By Chris Cosgrove

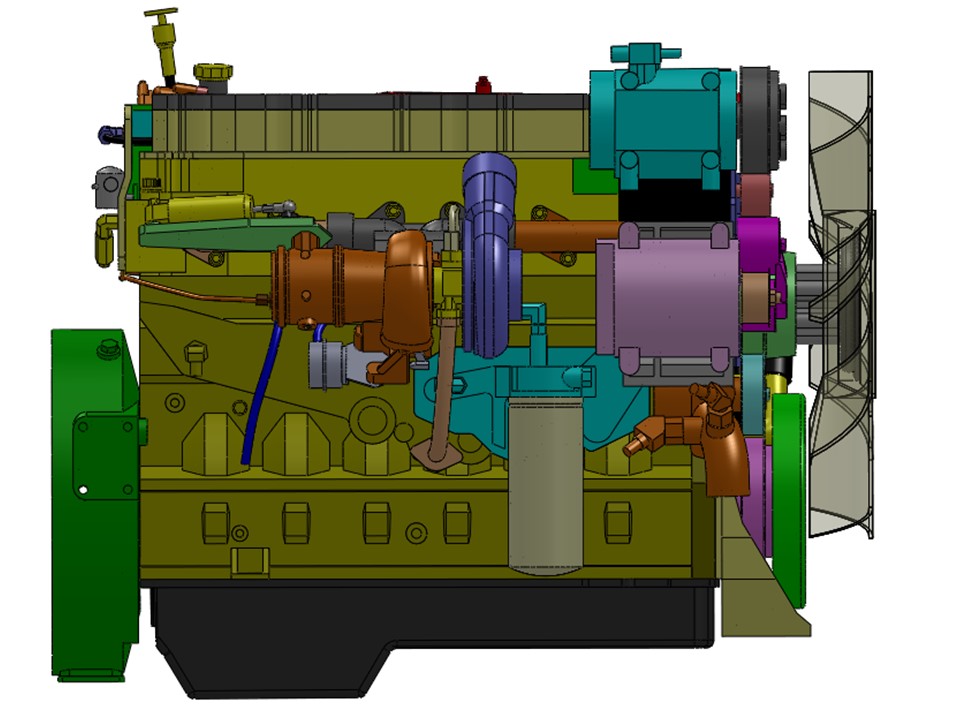

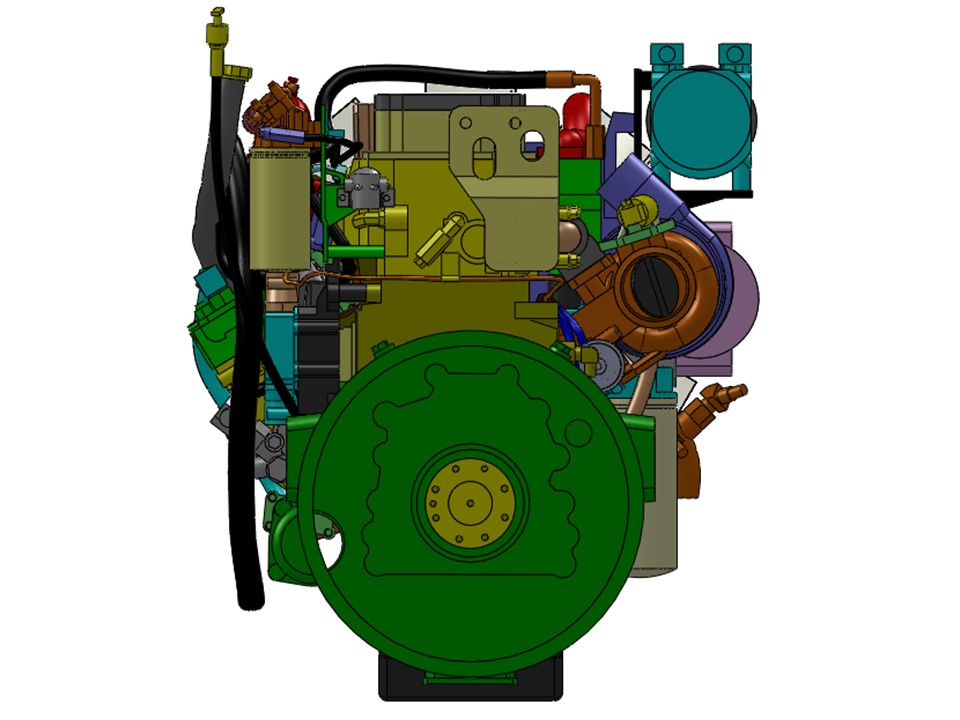

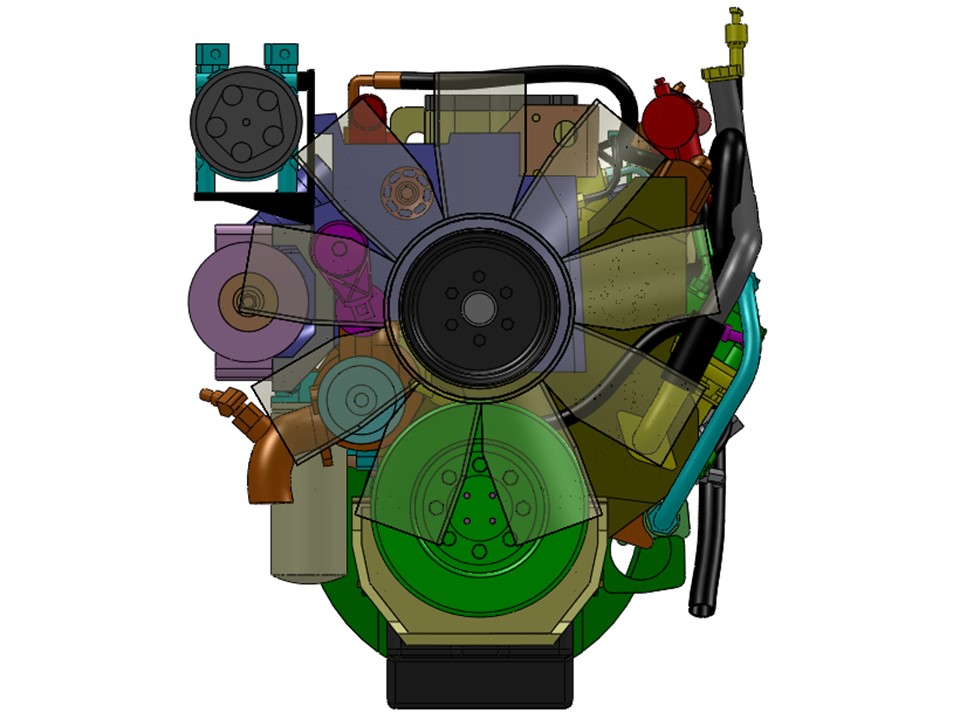

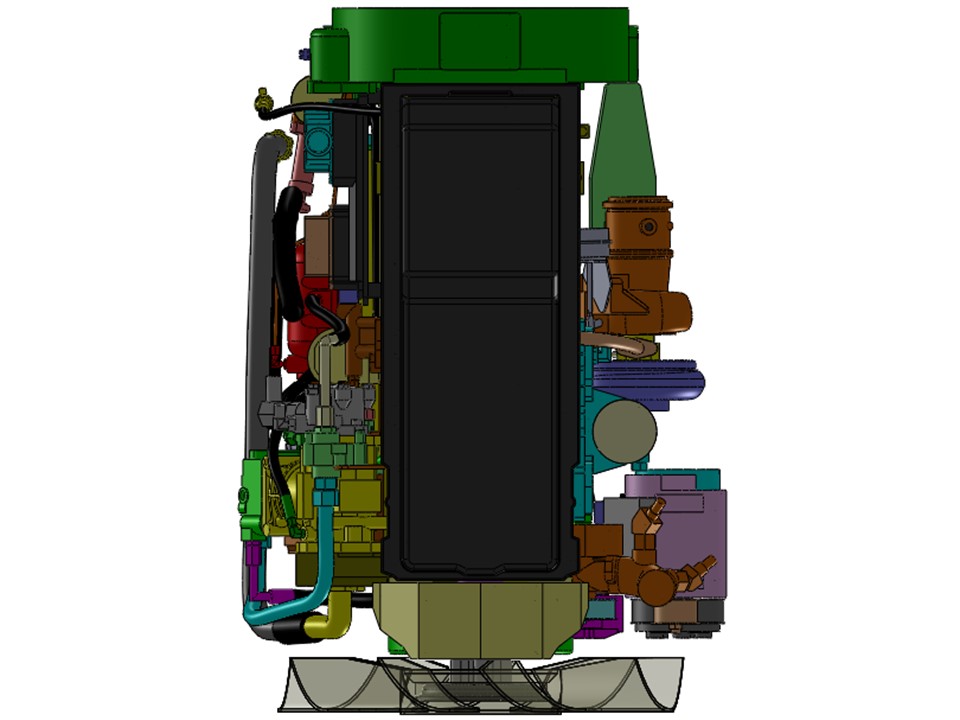

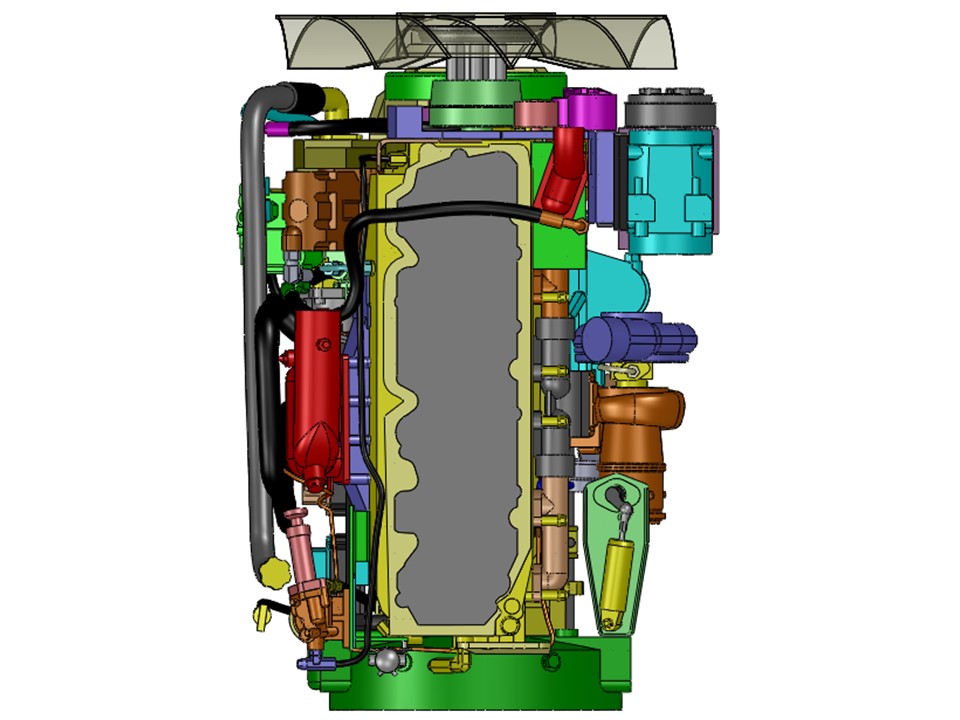

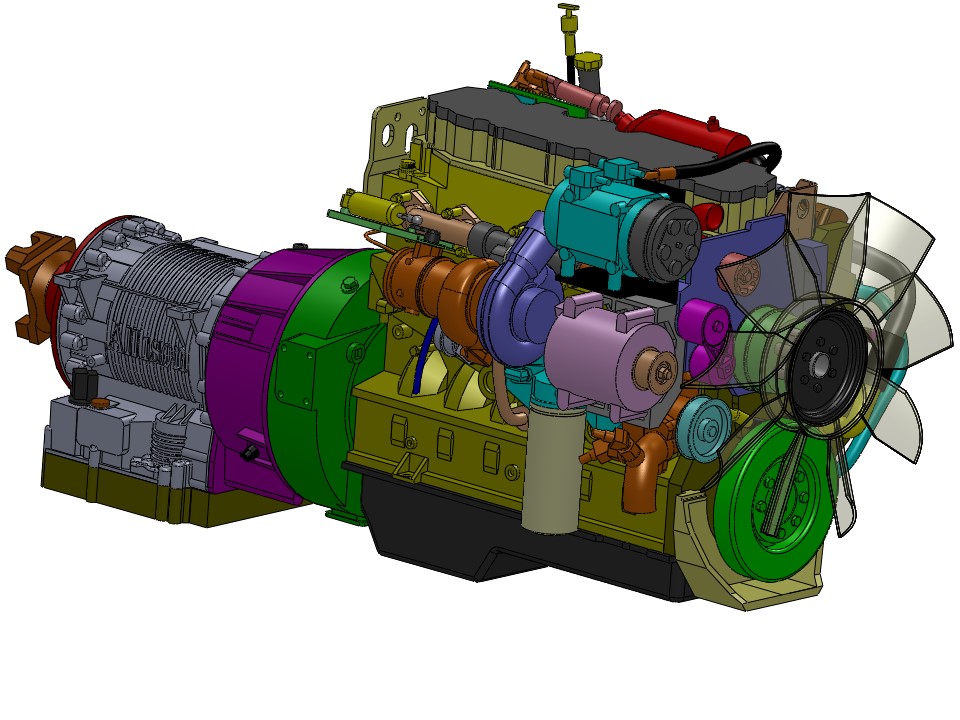

SURVICE Metrology performed this data collection using our SURVICE Reverse Engineering System (SRE) to develop a detailed Pro-Engineer engine model. The existing MRAP CAT I A1 geometry model required a detailed component level engine model to support various applications. The detailed engine can be used for space claim, blast analysis, vulnerability analysis, and other FEA applications.
